Piston assembly

Prouduct name:Piston assembly
Product summary:l. Piston has single action, double action, single action vulcanization and double action vulcanization piston ,which has A,K, B L type.

Contact information:
TEL:(+86)0546-8554666   Mobile: (+86)15105461026
E-MAIL: info@rosenwellpetro.com
Product Details

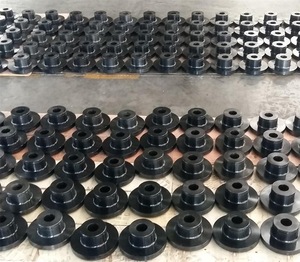

a)Piston Hub

  Piston Hub the material used is ASTM5140 or ASTM4140, the premium forged steel. Piston  has single action, double action, single action vulcanization and double action vulcanization piston ,which has A,K, B & L type. Outer round is determined based on the liner bore, it has 4”、4.5”、5”、5.5”、6”、6.25”、6.5”、6.75”、7”、7.25”、7.5”、7.75”、8” and piston has  1”、1-1/2”、1-5/8”. Double action piston has API-1#、API-3#、API-4#、API-5#、API-6#.

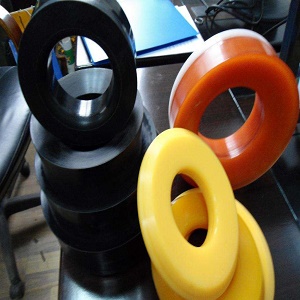

b) Piston Rubber

Piston Rubbermaterials used is or Polyurethane. They are divided intoA, K, B and K type and  the size will be determined based on the piston to be used.

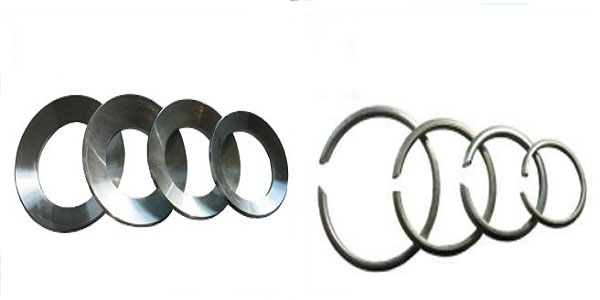

c) Plate & Snap Ring

Plate & Snap Ringmaterial used is 20# steel plate, and it is completed throughfine machining & pressing.. Its size will be determined based on the piston to be used. Material of snap is adopted and used ASTM1066 and it is divided into A、K、B、L type.
